What It Does
The ez Share Wi-Fi SD card adapter creates its own isolated Wi-Fi access point inside whatever device it's plugged into. Your home network has no visibility into it.
The Mule & Miner sits on your network, connects to that ez Share AP, and forwards the data over your LAN via HTTP on a configurable polling interval. Plug it in, provision it once via captive portal, and it runs headlessly from then on.
This kit includes everything — bridge, adapter, and SD card. Nothing else to buy.
Now with dual Wi-Fi and O2Ring oximetry support — stream SpO₂ and heart rate alongside your CPAP therapy data to CpapDash.

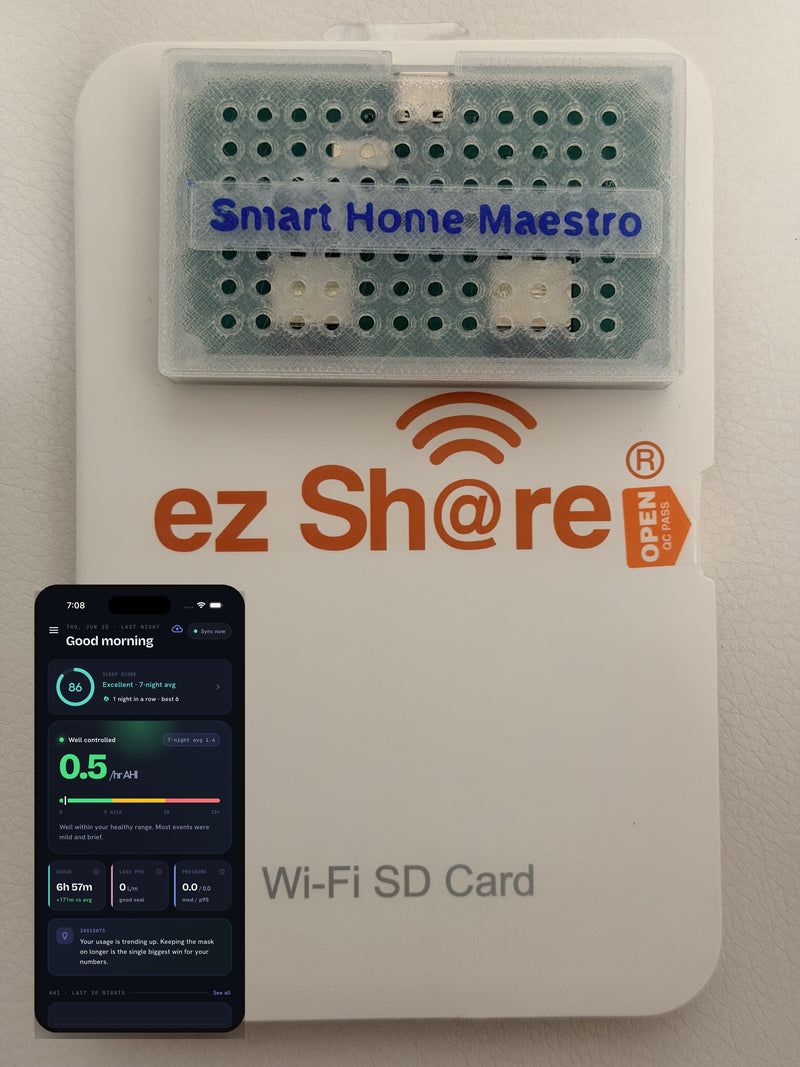

What's in the Kit
Included
Mule & Miner Bridge
Fully assembled and tested. Dual ESP32-C3, 3D-printed PLA+ enclosure, USB-C powered — no battery.
Included
ez Share WiFi SD Adapter
Verified compatible adapter. Inserts into any standard SD slot and creates the wireless AP the bridge connects to.
Included
8GB MicroSD Card
Pre-tested. Slots into the ez Share adapter. Ready to use immediately.
Specifications
| Microcontrollers |
2× ESP32-C3 (RISC-V, 160 MHz) |
| Wi-Fi |
2× independent 2.4 GHz 802.11 b/g/n |
| Power |
USB-C, 5V / ~250 mA typical — no battery |
| Output |
HTTP (REST) |
| Provisioning |
Captive portal (no serial cable needed) |
| Enclosure |
3D-printed PLA+, white |
| Dimensions |
36 × 71 × 18 mm |
In the Box
✓Mule & Miner — assembled & tested
✓ez Share WiFi SD Card Adapter
✓8GB MicroSD Card (pre-tested)
✓USB-C power cable
✓Quick-start setup card
✗USB power adapter — not included
Known Applications
CPAP Therapy Monitoring
ResMed machines (AirSense 10/11, AirCurve 10) write session data to the SD card. The Mule & Miner makes that data available on your network in real time while you sleep.
SD Card File Offload
Any device using an ez Share adapter can have its files automatically forwarded to a NAS or local server without removing the card.
General ez Share Network Bridge
Any device with an ez Share SD card inserted becomes network-accessible. What you do with the data is up to you.
Power & Shipping
No battery. No lithium cells. No rechargeable components. This device requires USB-C mains power only and is safe for international shipping without any battery-related restrictions.
